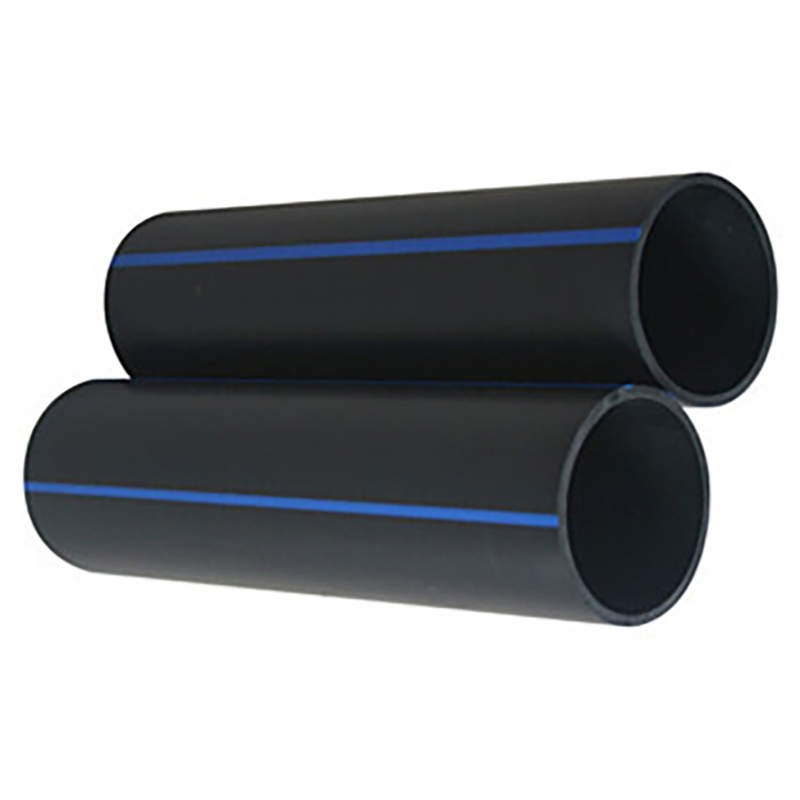

Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance

Wuxi High Mountain Hi-tech Development Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers

    Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers
    • Buy cheap Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance from wholesalers

    Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance

    Ask Lasest Price
    Brand Name : HAIYANG
    Model Number : HM03033
    Certification : ISO9001
    Price : 0.5$/m(1~10m);0.43$/m(>1000m)
    Supply Ability : 5000 Metric Ton/Metric Tons per Year
    MOQ : 100 Meters
    • Product Details
    • Company Profile

    Plastic HDPE Water Supply Drainage Pipes Customized Size Good Resistance

    High Quality Customized Size Water Supply And Drainage Plastic Factory Direct Supply

    ----------------------------------------


    Basic Info.


    There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.


    SDR26SDR21SDR17SDR13.6SDR11
    Pressure 0.6MpaPressure 0.8MpaPressure 1.0MpaPressure 1.25MpaPressure 1.6Mpa
    Outer diameter mmThick mmOuter diameter mmThick mmOuter diameter mmThick mmOuter diameter mmThick mmOuter diameter mmThick mm
    1104.2904.3754.5634.7202.3
    1254.81105.3905.4755.6252.3
    1405.412561106.6906.7323
    1606.21406.71257.41108.1403.7
    1806.91607.71408.31259.2504.6
    2007.71808.61609.514010.3635.8
    2258.62009.618010.716010.8756.8
    2509.622510.820011.918013.3908.2
    28010.725011.922513.420014.711010
    31512.128013.425014.822516.612511.4
    35513.63151528016.625018.414012.7
    40015.335516.931518.728020.616014.6
    45017.240019.135521.131523.218016.4
    50019.145021.540023.735526.120018.2
    56021.450023.945026.740029.422520.5
    63024.156026.750029.745033.125022.7
    71027.26303056033.250036.828025.4
    80030.671033.963037.456041.231528.6
    90034.480038.171042.163046.335532.2
    100038.290042.980047.471052.240036.3
    120045.9100047.790053.380058.845040.9
    120057.2100059.350045.4
    56050.8
    63057.3

    Advantage


    1. Good resistance to stress cracking: HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, and the resistance to environmental stress cracking is also very prominent.
    2. Good impact resistance at high temperature: The high temperature embrittlement temperature of polyethylene is extremely low, and it can be used safely in the temperature range of -60-60°C. During construction in summer, due to the good impact resistance of the material, the pipe will not be brittle.
    3. Good chemical corrosion resistance: HDPE pipes are resistant to corrosion by a variety of chemical media, and the chemicals present in the soil will not cause any degradation to the pipes. Polyethylene is an electrical insulator, so it does not decay, rust or electrochemically corrode; it also does not promote the growth of algae, bacteria or fungi. Nonetheless, there is the release of harmful substances when extinguished.
    4. Good wear resistance: The comparison test of wear resistance of HDPE pipe and steel pipe shows that the wear resistance of HDPE pipe is 4% of that of steel pipe.
    times. In the field of mud conveying, compared with steel pipes, HDPE pipes have better wear resistance, which means that HDPE pipes have better wear resistance.
    Long service life and better economy.


    Details


    Application


    1. Urban tap water pipe network system.
    2. Urban and rural drinking water pipelines.
    3. Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.
    4. Agricultural irrigation pipes.
    5. Protection sleeves for post and telecommunications lines and power wires.
    6. Mine mortar conveying pipeline.

    Certificate


    Company Profile


    High Mountain Pipe is a high-tech enterprise integrating R&D, production and sales, specializing in the production of ultra-high molecular weight polyethylene pipes, tunnel escape pipes, steel belt reinforced polyethylene (HDPE) spiral corrugated pipes, HDPE pipes, internal and external plastic-coated composite steel pipes, 3PE anticorrosion A series of multi-specification pipe products such as pipelines, gas station oil pipelines, oil well pipes, MPP power pipes, etc. The company always adheres to the concept of "innovation, efficiency, and integrity", absorbs new ideas, strictly controls quality, follows up all-round services, and insists on making high-quality products. Adhering to the tenet of "pursuing and creating brilliance", we provide solid and reliable guarantee and support for customers' production and operation. Become a reliable partner for the majority of users. Relying on the company's resources, the products are sold all over the country, and exported to Brazil, the Philippines, Australia, the United States, Mexico, South Africa and other countries, and have won unanimous praise from customers! Survive by quality, develop by reputation, we warmly welcome your patronage and sincerely look forward to serving you!




    FAQ


    Q: How is your price?
    A: Although we have brand-name products, our prices are very favorable and competitive. Because of our best price, customers from all over the world come to purchase our products.


    Q: What are your payment terms?
    A: Accept the T/T and L/C terms.


    Q: What are raw materials?
    A: PE
